HVAC airstream UV-C

In-Duct UV-C: Treat the air as it moves through the duct.

Cognituv DUCT modules mount through the duct wall to treat moving air and the duct surfaces around them. It’s a drill-and-fill retrofit for existing systems, with outdoor-rated versions for rooftop equipment.

IN-DUCT UV-C · HOW IT MOUNTSCoilDUCT moduleoutside the ductLamp statusto BMS or ConnectLamp lights the airstreamand duct wallsUV-C lamp in the airstreamAIRFLOWDrill-and-fill retrofit

The problem and our answer

The problem

Ducts and plenums are dark and often damp, which is where biofilm and mold settle. Getting inside to clean them means downtime, access panels and contractors, and the growth comes back.

Our answer

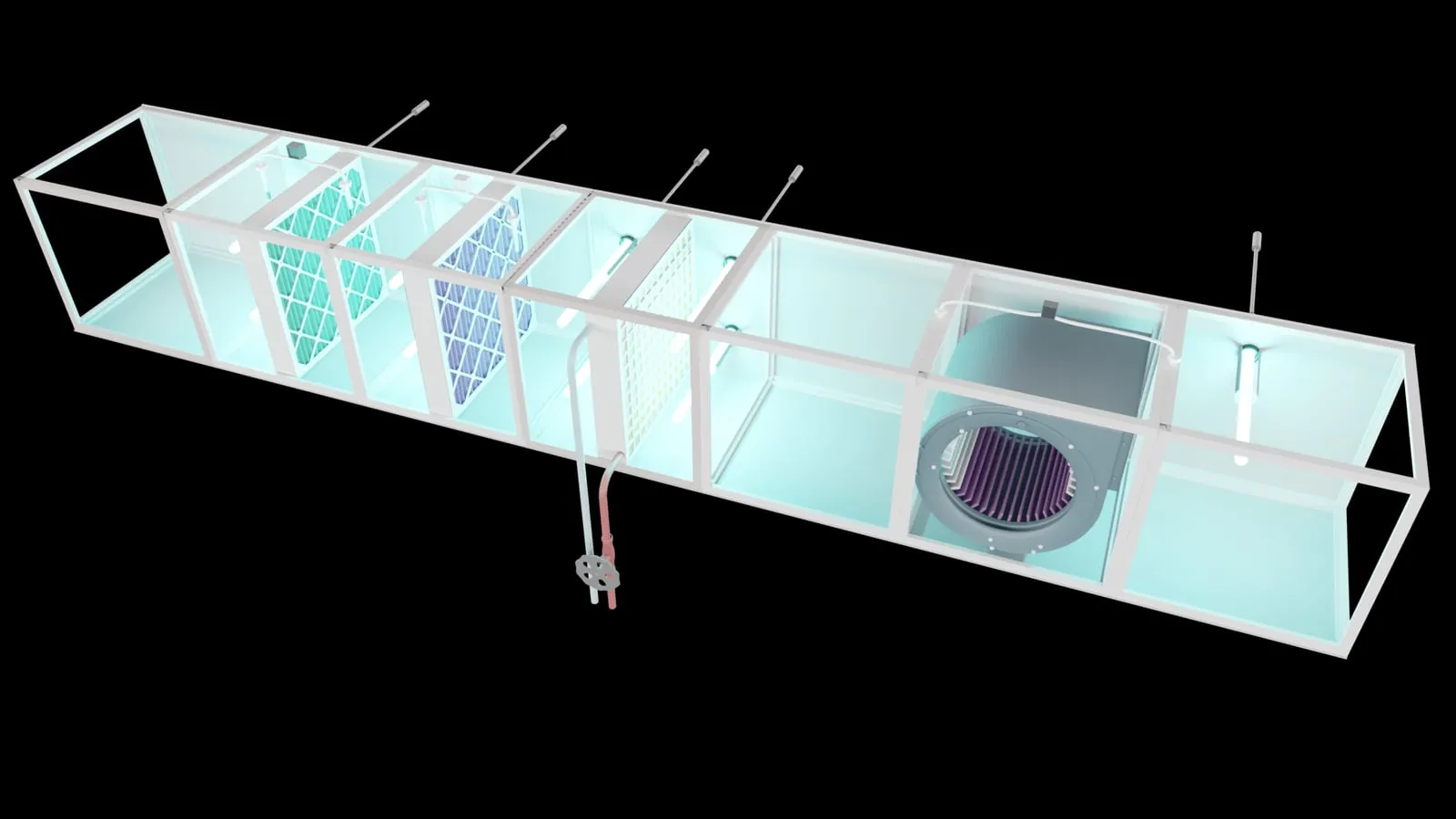

DUCT modules put UV-C lamps directly in the airstream. They mount through the duct wall (the single-lamp module through two pilot holes, the dual-lamp modules as a flanged box), treat the air passing by and the surfaces nearby, and show lamp status on every module, with a lamp-fail output for your BMS on the single-lamp module.

Why it matters

What In-Duct UV-C does for you.

  • Fits existing ductwork

    Drill-and-fill installation through the duct wall. No ductwork replacement and little downtime.

  • Sized to the airflow

    A single-lamp 95 W module and dual-lamp modules at 35, 60 and 95 W, matched to duct size and air volume.

  • Indoors or on the roof

    Standard enclosures for interior ductwork; outdoor-rated N4X versions for rooftop units and exposed runs.

  • You can see it working

    LED lamp status on every module, a lamp-fail output for your BMS on supported models, and Cognituv Connect UV-C sensors where you want a continuous record.

Where it goes

On the duct, inside or on the roof.

DUCT modules mount through the duct wall, so they go wherever the duct runs: on the trunk, on a branch, or outdoors on a rooftop unit’s exposed run.

Illustration: a school cut open, with a DUCT N4X module on the rooftop unit’s exposed supply duct (1), a dual-lamp DUCT module on the main trunk above the classroom ceiling (2) and a single-lamp module on a branch duct (3)

The DUCT range

Which one do I need?

Identify · Apply · Verify™

How it works with Cognituv.

  1. Identify

    We survey duct runs and air handlers and log airflow, humidity and pressure where problems show up.

  2. Apply

    DUCT modules sized to the airflow and placed downstream of the coil or at problem sections.

  3. Verify

    Lamp status shows on every module, the single-lamp module reports lamp failure to your BMS, and UV-C output goes into Cognituv Connect, documented from day one.

The evidence

How you’ll know it works.

  • Design guidance

    In-duct UV-C has published design guidance, including the International Ultraviolet Association’s guideline for in-duct systems, and DUCT modules are sized to the duct and the air volume.

    IUVA in-duct guideline →
  • On your system

    Every module shows lamp status by LED, the single-lamp module adds a lamp-fail output for your BMS, and Cognituv Connect UV-C sensors keep a continuous record.

    UV-C irradiance sensor →

Before you ask

Common questions about In-Duct UV-C.

Is it the same as Cognituv Grid?
No. Grid sits on the cooling coil and keeps it cleaner between cleanings. DUCT modules sit in the duct and treat the moving air and the duct surfaces near them. They can work together.
How does it install?
Through the duct wall: the single-lamp module through two pilot holes, the dual-lamp modules as a flanged box. There’s no ductwork to replace and little downtime.
Does it make ozone?
No. DUCT modules use ozone-free lamps.
What about rooftop units?
The N4X versions have an outdoor-rated enclosure for rooftop units and exposed runs.
How do we know the lamps are on?
Every module shows lamp status by LED. The single-lamp module adds a lamp-fail output for your BMS, and Cognituv Connect UV-C sensors give a continuous record where you want one.

Is In-Duct UV-C right for your facility?

Start with a no-cost assessment: a call with an engineer and a written recommendation. We’ll size it to your equipment, or tell you what fits better.
